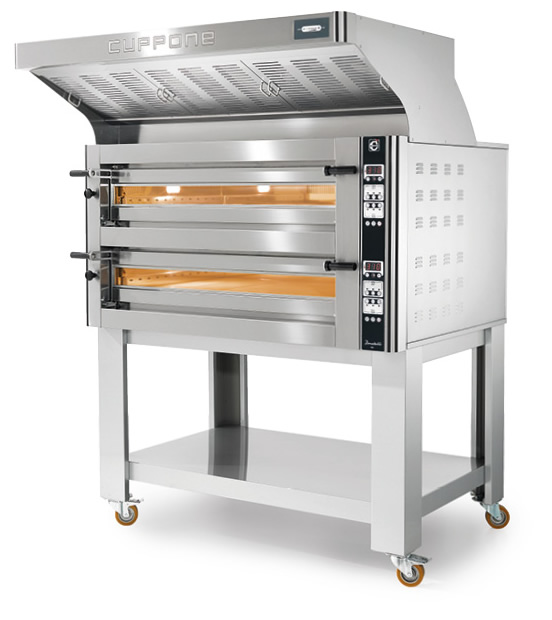

                    Donatello pizza ovens


                  The Donatello Cuppone oven is the new mid-range
                    oven from Cuppone.

                      Ovens have a highly energy efficient digital control
                    panel which allows controllability of the top and the
                    bottom deck heating elements and also has an
                    acoustic cooking timer.
            The Donatello has a revolutionary heat regeneration system that is positioned at the front of the oven
              inside the door area it immediately re-circulates the
              heat back into the oven when the door is opened.
              The doors are fitted with a heat seal between the
              door and the cooking chamber to retain the heat
              when the doors are closed.
            These ovens are incredibly easy to clean: simply turn up the heat for around half an hour at the end of
              service, then turn the oven off and when you come in
              the morning simply sweep the residue up.
            Ovens can be supplied with a stand and a fully
              operational extraction hood which should be vented
              out of the building.

              Features


                      •  |
                      Stainless steel construction   |


                      •  |
                      Digital control panel  |


                      •  |
                      Independently controlled top and bottom heating   |


                      •  |
                      Heat regeneration system  |


                      •  |
                      Panoramic glass door  |


                      •  |
                       Cordierite refractory bricks   |


                      •  |
                      Easy to clean   |


                      •  |
                      Easy to use   |



                      Options*



                          •  |
                          Stand with or without castors   |


                          •  |
                          Extraction hood   |




           |


             |




                LLKDN4351
                Pizza oven



                    Total capacity  |
                     4 x 300mm (12”) pizzas in pans  |


                    Exterior dimensions(wxdxh)  |
                     1155 x 1000 x 437  |


                    Oven dimensions(wxdxh)  |
                     720 x 720 x 150  |


                    Stand dimensions(wxdxh)*  |
                    1155 x 745 x 1100   |


                    Extraction hood(wxdxh)*
                      |
                    1165 x 760 x 500   |


                    Total loading   |
                     5.1kw  Single or 3 phase   |


                    Warranty  |
                     2 year parts and 1 year labour  |


                    |   |
                      |


                    |   |
                      |


           |


           |


           |


              LLKDN6351
              Pizza oven



                  Total capacity  |
                   6 x 300mm (12”) pizzas in pans  |


                  Exterior dimensions(wxdxh)  |
                   1155 x 1360 x 437  |


                  Oven dimensions(wxdxh)  |
                   720 x 1080 x 150  |


                  Stand dimensions(wxdxh)*  |
                  1155 x 1105 x 1100  |


                  Extraction hood(wxdxh)*
                    |
                  1165 x 1120 x 500   |


                  Total loading   |
                   7.8kw Single or 3 phase    |


                  Warranty  |
                   2 year parts and 1 year labour  |


                  |   |
                    |


                  |   |
                    |


           |


           |


           |

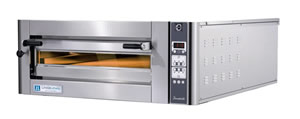

              LLKDN6351L
              Pizza oven



                  Total capacity  |
                   6 x 300mm (12”) pizzas in pans  |


                  Exterior dimensions(wxdxh)  |
                   1515 x 1000 x 437  |


                  Oven dimensions(wxdxh)  |
                  1080 x 720 x 150   |


                  Stand dimensions(wxdxh)*  |
                   1515 x 745 x 1100   |


                  Extraction hood(wxdxh)*
                    |
                  1525 x 760 x 500   |


                  Total loading   |
                   7.8kw Single or 3 phase   |


                  Warranty  |
                   2 year parts and 1 year labour  |


                  |   |
                    |


                  |   |
                    |


           |


           |


           |


              LLKDN9351
              Pizza oven



                  Total capacity  |
                   9 x 300mm (12”) pizzas in pans  |


                  Exterior dimensions(wxdxh)  |
                   1515 x 1360 x 437   |


                  Oven dimensions(wxdxh)  |
                   1080 x 1080 x 150  |


                  Stand dimensions(wxdxh)*  |
                  1515 x 1105 x 1100  |


                  Extraction hood(wxdxh)*
                    |
                  1525 x 1120 x 500   |


                  Total loading   |
                   11.7kw Single phase or 3 phase   |


                  Warranty  |
                   2 year parts and 1 year labour  |


                  |   |
                    |


                  |   |
                    |


           |


           |


           |

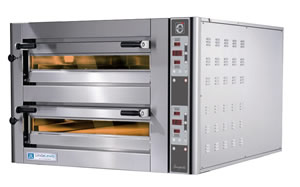

              LLKDN4352
              Pizza oven



                  Total capacity  |
                    8 x 300mm (12”) pizzas in pans  |


                  Exterior dimensions(wxdxh)  |
                   1155 x 1000 x 784   |


                  Oven dimensions(wxdxh)  |
                  720 x 720 x 150  |


                  Stand dimensions(wxdxh)*  |
                  1155 x 745 x 900  |


                  Extraction hood(wxdxh)*
                    |
                  1165 x 760 x 500   |


                  Total loading   |
                   10.2kw Single phase or 3 phase   |


                  Warranty  |
                   2 year parts and 1 year labour  |


                  |   |
                    |


                  |   |
                    |


           |


           |


           |


              LLKDN6352
              Pizza oven



                  Total capacity  |
                   12 x 300mm (12”) pizzas in pans   |


                  Exterior dimensions(wxdxh)  |
                   1155 x 1360 x 784  |


                  Oven dimensions(wxdxh)  |
                  720 x 1080 x 150  |


                  Stand dimensions(wxdxh)*  |
                   1155 x 1105 x 900  |


                  Extraction hood(wxdxh)*
                    |
                  1165 x 1120 x 500   |


                  Total loading   |
                   15.6kw Single phase or 3 phase   |


                  Warranty  |
                   2 year parts and 1 year labour  |


                  |   |
                    |


                  |   |
                    |


           |


           |


           |


              LLKDN6352L
              Pizza oven



                  Total capacity  |
                   12 x 300mm (12”) pizzas in pans  |


                  Exterior dimensions(wxdxh)  |
                   1515 x 1000 x 784  |


                  Oven dimensions(wxdxh)  |
                   1080 x 720 x 150  |


                  Stand dimensions(wxdxh)*  |
                  1515 x 745 x 900   |


                  Extraction hood(wxdxh)*
                    |
                  1525 x 760 x 500   |


                  Total loading   |
                   15.6kw Single phase or 3 phase   |


                  Warranty  |
                   2 year parts and 1 year labour  |


                  |   |
                    |


                  |   |
                    |


           |


           |




                          |


              LLKDN9352
              Pizza oven



                  Total capacity  |
                   18 x 300mm (12”) pizzas in pans   |


                  Exterior dimensions(wxdxh)  |
                   1515 x 1360 x 784  |


                  Oven dimensions(wxdxh)  |
                  1080 x 1080 x 150  |


                  Stand dimensions(wxdxh)*  |
                  1515 x 1105 x 900  |


                  Extraction hood(wxdxh)*
                    |
                  1525 x 1120 x 500   |


                  Total loading   |
                   23.4kw Single phase or 3 phase  |


                  Warranty  |
                   2 year parts and 1 year labour  |


                  |   |
                    |


                  |   |
                    |


           |
